BOUN SAMPLE

Ref MUEPLA5A

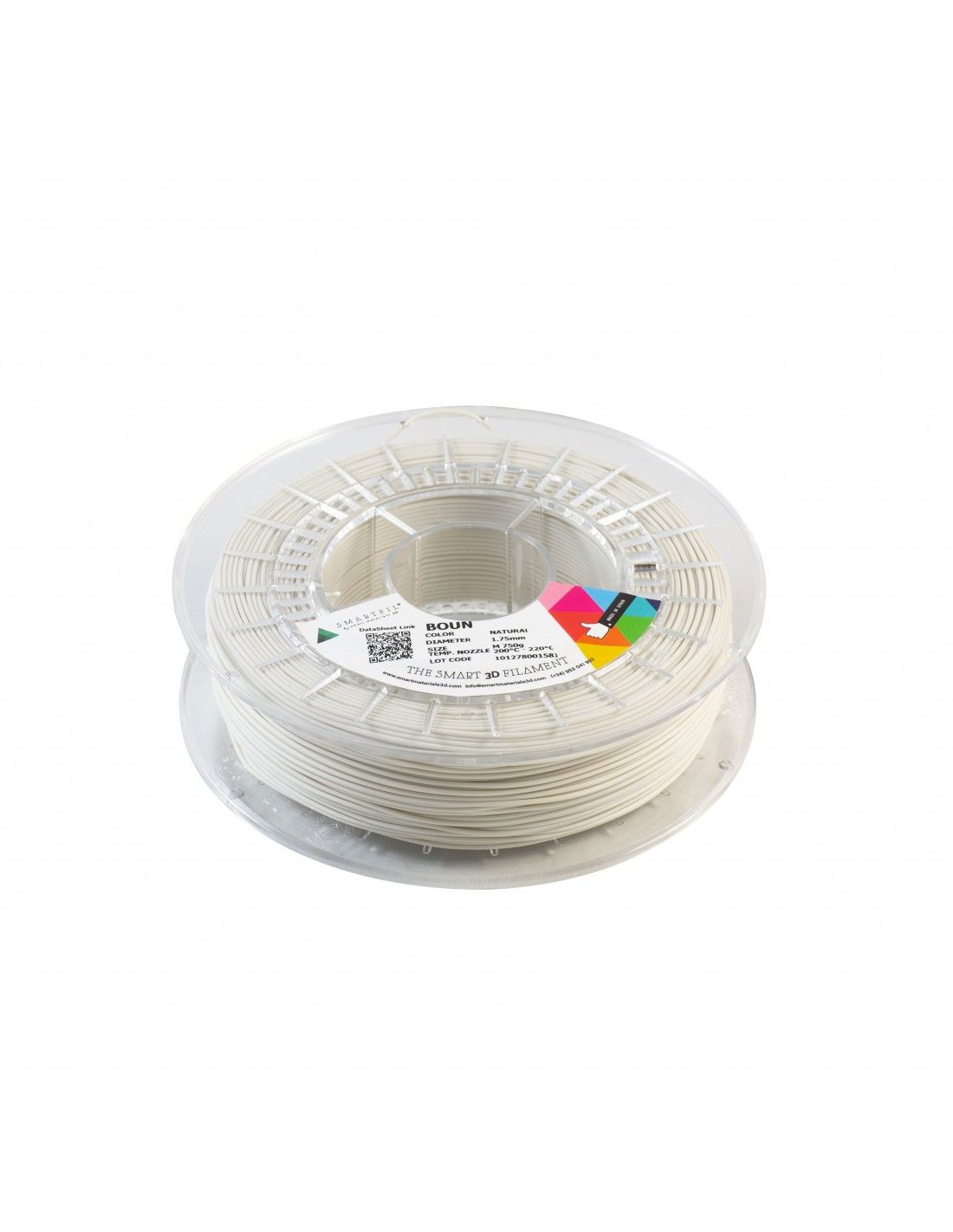

Sample BOUN filament of ± 35 grams.

Sample BOUN filament of ± 35 grams.

DESCRIPTION

It is a filament developed in 3D Smart Materials with mechanical performance similar to polypropylene, thanks to its flexibility it is possible to develop semi-rigid pieces that are highly resistant to impact, we can obtain pieces with an exceptional finish and with a very pleasant soft touch it won't remind you of plastic.

It is a material compatible with most printers on the market because it does not need to have a heated base, in addition Boun is a material without contractions or warping so you can make pieces of any size.

IMPORTANT NOTE : Due to the high adhesion of this material, once printed, it is recommended to detach it by applying water to the base.

PRINT OPTIONS

MECHANICAL PROPERTIES

Mechanical Properties

Values
Measurement unit
Standard
Mechanical Properties*
Plane XY
Plane ZX
Tensile elongation (until break)
Plane XY150
Plane XY1.4
Measurement unit%
StandardISO 527
Alargamiento al esfuerzo máximo
Plane XY194
Plane XY-
Measurement unit%
StandardISO 527
Bending elongation at break
Plane XY-
Plane XY-
Measurement unit%
StandardISO 178
Hardness
Plane XY55
Plane XY-
Measurement unitShore D
StandardISO 7619-1
Charpy impact force (notched)
Plane XY99.8
Plane XY-
Measurement unitkj/M2
StandardISO 179
Flexural modulus
Plane XY239
Plane XY191
Measurement unitMPa
StandardISO 178
Traction module
Plane XY90.8
Plane XY127
Measurement unitMPa
StandardISO 527
Flexural strength
Plane XY8.5
Plane XY4.4
Measurement unitMPa
StandardISO 178
Tensile strength
Plane XY8.4
Plane XY2
Measurement unitMPa
StandardISO 527

*Valores obtenidos sobre probetas impresas, noozle 0.4mm, infill rectilíneo 100%, altura de capa 0.2mm. Para más información contacta con nosotros.

MATERIAL PROPERTIES

Materials Properties

RESISTENCIA AL IMPACTO

RESISTENCIA QUIMICA

RESISTENCIA TERMICA

RIGIDEZ

PRINTING DIFFICULTY
